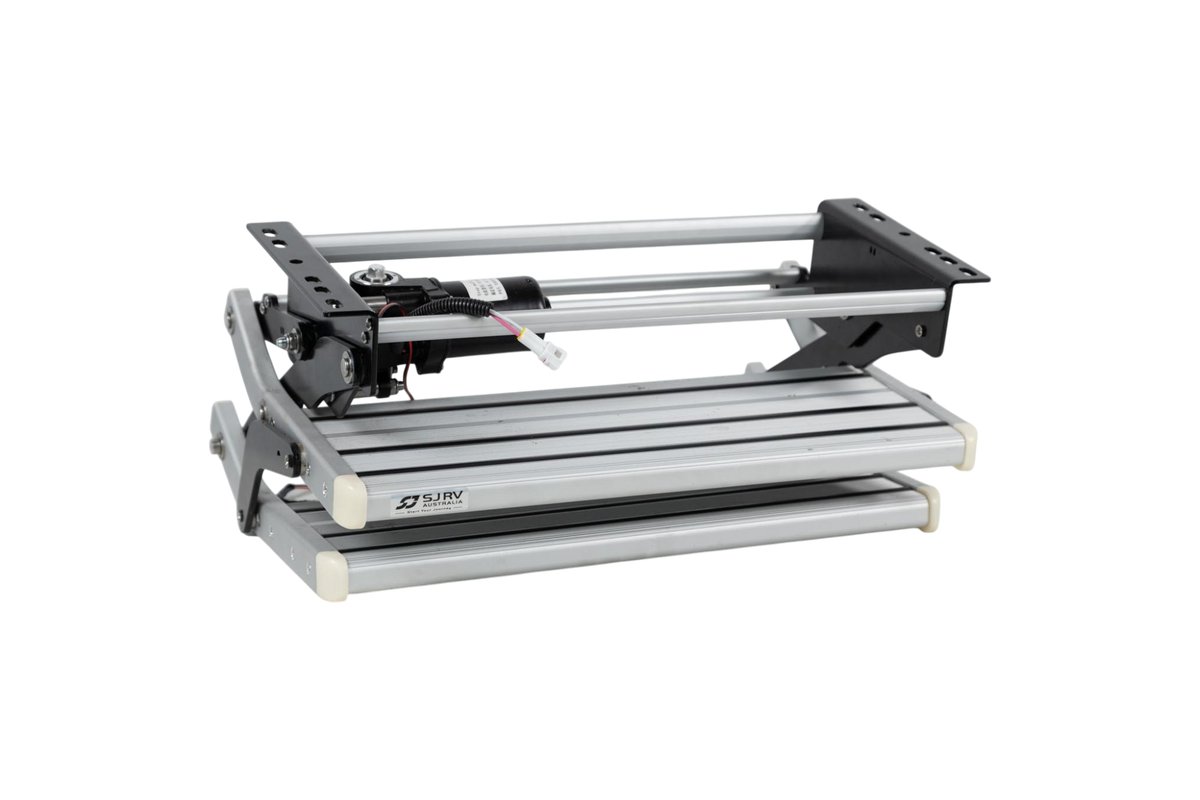

Double Electric Caravan Step with LED – 280mm Drop

A practical double electric caravan step designed to provide easier access to caravans, motorhomes and RVs. Operated by a switch, the two-step design provides a more gradual entry height, with a 280mm total drop, integrated LED lighting and high-strength anti-slip aluminium treads.

Features

• Double electric drop-down step
• Switch-operated extension and retraction
• 280mm total drop height
• Integrated LED light strip
• High-strength anti-slip aluminium treads
• Maximum load capacity: 200kg
• Anodised and sandblasted surface finish
• Available in black or silver
• Suitable for chassis or floor mounting
• Compact folding design when retracted
• Suitable for caravans, motorhomes and RVs

Specifications

• Step type: Double electric drop-down step
• Overall width: 555mm
• Tread width: 530mm
• Extended depth: 532mm
• Total drop height: 280mm
• Step height: 155mm
• Retracted depth: approximately 403mm
• Retracted height: approximately 246mm
• Overall depth when fully extended: approximately 757mm
• Maximum load: 200kg
• Material: High-strength aluminium
• Finish: Anodised and sandblasted
• Lighting: Integrated LED strip
• Operation: Electric, switch-operated
• Mounting: Chassis or floor mounting
• Mounting hole diameter: 10mm
• Available colours: Black and silver

Important

Do not stand on or use the step until it is fully extended. Using the step before it is fully open may cause damage.

Before You Order

Please check the available mounting space, chassis clearance and mounting-hole positions before ordering to ensure the step is suitable for your vehicle. Professional installation is recommended.
